Product Summary

The 8S207 performance line 8-bit microcontroller offer from 32 to 128 Kbytes Flash program memory. The 8S207 is referred to as high-density devices in the STM8S microcontroller family reference manual. The 8S207 provide the following benefits: reduced system cost, performance robustness, short development cycles, and product longevity. The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog, and brown-out reset.

Parametrics

8S207 absolute maximum ratings: (1)VDDx - VSS Supply voltage (including VDDA and VDDIO): -0.3 to 6.5V; (2)VIN; (3)Input voltage on true open drain pins (PE1, PE2): - 0.3 to 6.5V; (4)Input voltage on any other pin(2) VSS: - 0.3 to VDD + 0.3V; (5)|VDDx - VDD| Variations between different power pins: 50mV; (6)|VSSx - VSS| Variations between all the different ground pins: 50mv; (7)IVDD Total current into VDD power lines (source): 60mA; (8)TSTG Storage temperature range: -65 to 150°C; (9)TJ Maximum junction temperature: 150°C; (10)PD: 443mW.

Features

8S207 features: (1)2.95 to 5.5 V operating voltage; (2)Low power crystal resonator oscillator; (3)External clock input; (4)Internal, user-trimmable 16 MHz RC; (5)Internal low power 128 kHz RC; (6)Clock security system with clock monitor; (7)Wait, active-halt, & halt low power modes; (8)Peripheral clocks switched off individually; (9)Permanently active, low consumption power-on and power-down reset; (10)High speed 1 Mbit/s active beCAN 2.0B; (11)UART with clock output for synchronous operation - LIN master mode; (12)UART with LIN 2.1 compliant, master/slave modes and automatic resynchronization; (13)SPI interface up to 10 Mbit/s; (14)I2C interface up to 400 Kbit/s.

Diagrams

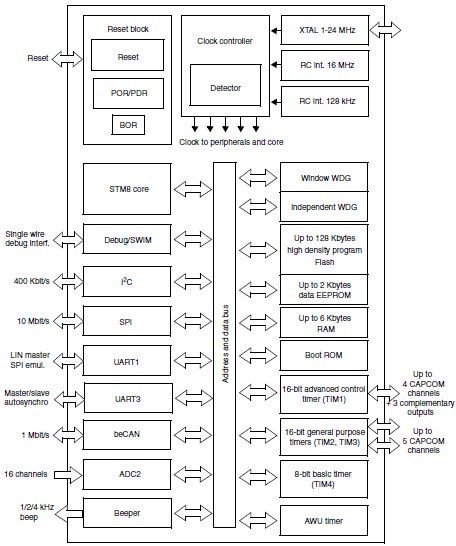

8S207 pin connection
