Product Summary
The LC4128V-75TN100C is a in-system programmable superFAST with high density PLD. The high performance LC4128V-75TN100C from Lattice offers a SuperFAST CPLD solution. Retaining the best of both families, the LC4128V-75TN100C architecture focuses on significant innovations to combine the highest performance with low power in a flexible CPLD family. The LC4128V-75TN100C combines high speed and low power with the flexibility needed for ease of design. With its robust Global Routing Pool and Output Routing Pool, this family delivers excellent First-Time-Fit, timing predictability, routing, pin-out retention and density migration.
Parametrics
LC4128V-75TN100C absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to 2.5V; (2)Output Supply Voltage (VCCO): -0.5 to 4.5V; (3)Input or I/O Tristate Voltage Applied4, 5: -0.5 to 5.5V; (4)Storage Temperature: -65 to 150℃; (5)Junction Temperature (Tj) with Power Applied: -55 to 150℃.
Features
LC4128V-75TN100C features: (1)High Performance; (2)Enhanced macrocells with individual clock, reset, preset and clock enable controls; (3)Up to four global OE controls; (4)Individual local OE control per I/O pin; (5)Excellent First-Time-Fit TM and refit; (6)Fast path, SpeedLocking TM Path, and wide-P path; (7)Wide input gating (36 input logic blocks) for fast counters, state machines and address decoders.

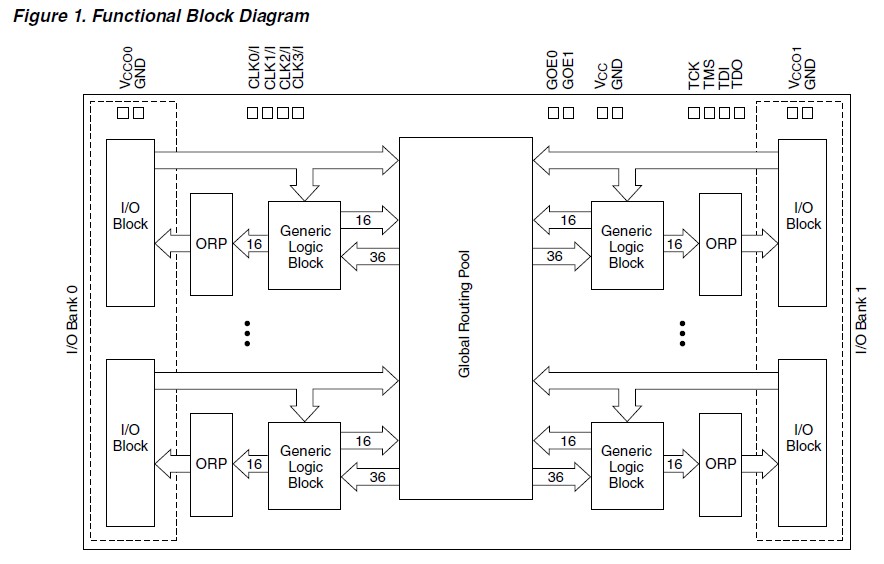

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LC4128V-75TN100C |
Lattice |
CPLD - Complex Programmable Logic Devices 400MHZ 128 Macrocell 3.3 V 7.5 tPD |
Data Sheet |
|
|
||||||||||
